C-17 Hog Ring for Wire and Mesh Fastening Applications

The C-17 hog ring is a reliable way for manufacturing workers to secure wire mesh structures, mattress springs, or car seat systems when they are having trouble. This industrial fixing part has a C-shaped profile with a crown width of 16.9 mm and a height of 8.7 mm. It was carefully designed for high-volume production settings where quality control and installation speed are important. These screws are made from galvanized steel with special coatings that keep them from rusting. They can handle harsh conditions in furniture factories, cage factories, and textile workshops all over the United States.

​

Understanding C-17 Hog Rings: Specifications and Applications

The tech that went into making these wire clips is the result of decades of progress in the industry. At TJJZ, we make C-17 Hog Rings that help our customers solve certain business problems they face every day. Dimensional control tests are done on each ring to make sure that the 16.9 mm width and 8.7 mm height standards are met in every batch we ship.

Material Composition and Corrosion Protection

Our galvanized steel structure is very resistant to rust and doesn't limit our freedom. The zinc coating layer acts as a shield to protect the steel underneath, which increases its service life in damp industrial settings. There are also zinc-aluminum alloys that are more resistant to rust. These are especially useful when rings are stored outside or used in wet conditions. Stainless steel versions are used in businesses that need to be more resistant to environmental factors, like coastal fencing or putting together food processing equipment.

​

Key Technical Parameters

The width of 16-gauge wire is just the right amount of strong and flexible. As part of our quality control process, we check the tensile strength values to make sure that rings don't crack on the outside when they are crimped. The C-shaped geometry lets all 360 degrees of wire connections be closed, making safe joints that don't move laterally even in places with a lot of vibration, like car seats.

Primary Application Sectors

Every day, factories in a wide range of businesses depend on these fastening options. Manufacturers of mattresses use them to attach spring coils to the frames around the edges. This makes for long-lasting sleeping surfaces that keep their shape after thousands of compression cycles. When furniture makers put serpentine springs in couch frames, they count on their constant holding power to keep the covering from sagging. The fast installation speed is appreciated by cage builders who are making homes for chickens or pets with hundreds of wire crossings per unit. Automotive makers who fasten seat cushion parts like how the sound resistance keeps the parts from coming loose while the vehicle is running.

How to Use C-17 Hog Rings Effectively: Installation and Tools Guide

The right way to put something makes both the fasteners work better and the installer more efficient. Working with production managers for a long time, I've seen how the choice of tools and how they are set up have a big effect on flow rates and joint quality.

Manual Installation Methods

Pneumatic Tool Systems

When used in high-volume settings, gas ring guns make workers more productive. These tools instantly feed collected rings, which lets workers finish joins in less than two seconds. Our rings have protective oil film coats and adhesive-free collation that keeps automatic feed systems from getting stuck, which is a typical problem with cheaper options. The pneumatic system provides constant squeezing force, so you don't have to worry about hand tiredness or changing joint quality during long production runs with manual pliers.

Installation Best Practices

Before starting to put the parts together, check the wire surfaces for dirt or oil that could get in the way of the rings fitting properly. Place materials so that they are tight against each other where you want to join them, leaving as few holes as possible that weaken the hold. When using pneumatic tools, make sure to keep the air pressure at the levels suggested by the maker to avoid under-crimping or ring deformation. Before committing to full runs, you should try sample joints on production materials. This is especially important when changing between material thicknesses or ring specifications.

Comparing C-17 Hog Rings with Other Fastening Solutions

Buying things has long-lasting effects on how well they are made and how long they last. Figuring out how the different types of binding affect performance can help you balance technical needs with limited funds.

C-17 Versus C-13 Ring Specifications

The main difference is in the head width measurements. Our C-13 rings are smaller than our C-17 Hog Rings, so they can be used in places where the spacing needs to be tighter or where the wire sizes need to be thinner. The wider 16.9 mm crown of C-17 Hog Rings, on the other hand, makes it easier to grip bigger wires or materials when they are under higher stress loads. When making mattresses with 12-gauge spring wire, makers usually choose C-17 Hog Ring sizes because they offer more keeping security.

Material Selection Considerations

Alternative Fastening Methods

In some fabric situations, staples make installation faster, but they don't have the same level of circular grip strength as hog rings. Wire ties are flexible, but they take a lot longer to place and don't always provide even strain. With adhesive bonding, you don't need any mechanical connections at all, but the curing process takes longer and is more sensitive to weather. Hog rings are useful in mixed-material systems where adhesives have trouble sticking together different surfaces because they are easy to install and last a long time.

Procurement Guide: Buying C-17 Hog Rings for Global B2B Clients

Sourcing methods have a direct effect on the costs of keeping supplies and production going. From working with furniture makers, cage makers, and car sellers, we've learned a few useful tricks that make the buying process go more quickly. When you buy in bulk, you can often get better deals if you work directly with OEM makers instead of wholesalers who act as middlemen. When you buy directly from the plant, you skip the markup steps and can get customization services for things like special coating needs or non-standard sizes. Minimum order amounts are usually between 50,000 and 100,000 pieces, which is a good fit for medium-sized production centers that use their supplies every three months. We keep a ready stock at our Tianjin plant, which means that standard specifications can be produced in 3–5 days.

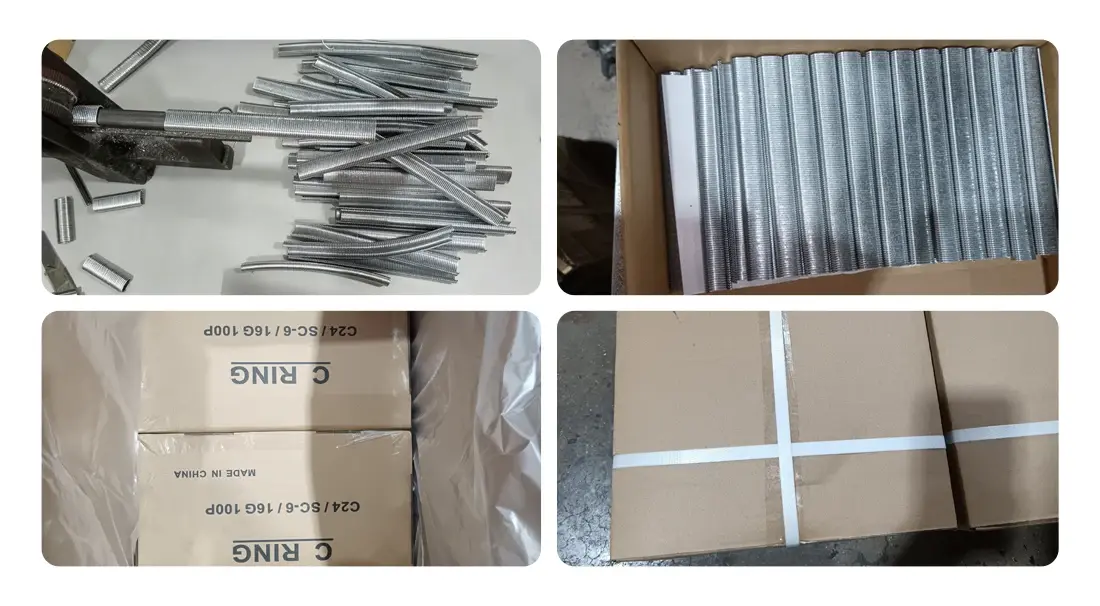

Shipping costs and how well items are handled on the shop floor are both affected by how the packages are packed. When compared to loose bulk packages, collated strips of 1,000 rings cut down on the number of times pneumatic tools need to be reloaded. Full-pallet shipments save money on shipping costs per unit, which is especially important when buying from Asian makers. Because we are close to Tianjin Port, we can load containers quickly, and our full-pallet transport rules keep the rate of damage to goods during international shipping low.

When you buy something internationally, you need to pay attention to the customs paperwork and the landing cost estimates. To speed up the customs clearance process, we provide all the paperwork needed for export, such as business bills, packing lists, and certificates of origin. For ocean freight, the time between placing an order and arriving at a U.S. port is usually between 4 and 6 weeks. However, air shipping is a choice for when pressing supplies are needed. After-sales support is still very important. During business hours, we answer all client questions within three minutes, which helps us quickly solve any technical or standard issues.

Why Choose TJJZ C-17 Hog Rings: Trusted Supplier Advantages

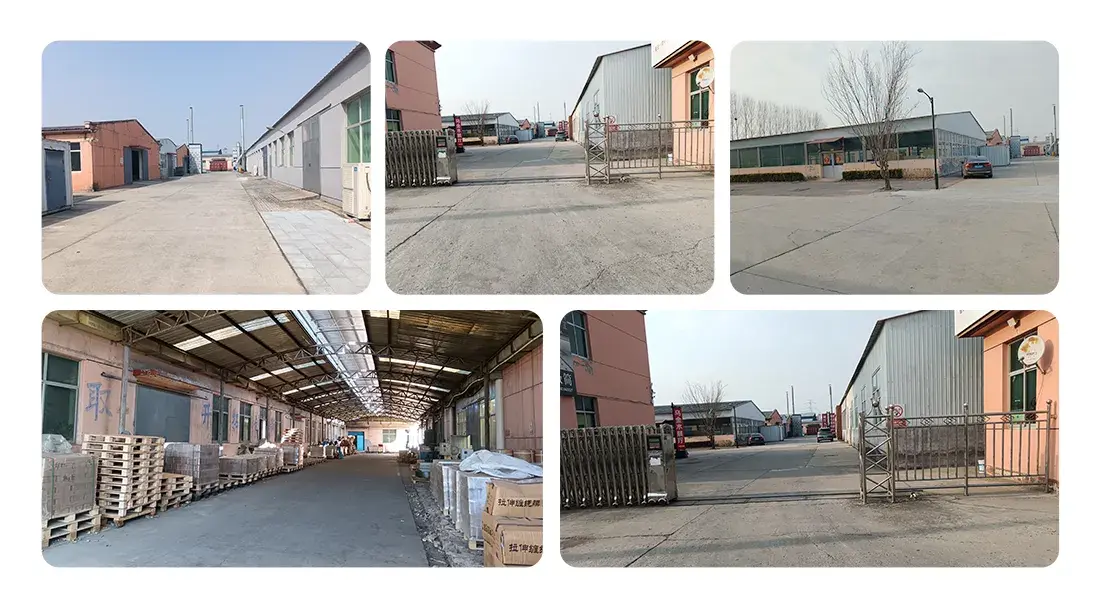

The Tianjin Jinzhuang New Materials Technology Co., Ltd. has only been making industrial fasteners since it started doing business in 2015. Because we only make C-17 Hog Rings, we can improve our production methods and quality control standards for those uses, instead of using our knowledge on a wide range of unrelated Products.

Manufacturing Excellence and Quality Assurance

During the whole process of making something, our factory uses multi-stage checking methods. Before forming processes start, the thickness tolerances of the wire are checked against the raw materials. During production, crown width and leg height are constantly checked by automatic systems that raise red flags for any differences before they affect whole batches.

The protective oil film we put on finished rings does two things: it keeps them from rusting while they're being stored, and it also makes sure they feed smoothly through automatic equipment. When our rivals use adhesive collation, it leaves sticky residue in the tool mechanisms. But our oil-film method stops jamming problems that stop production and need repair breaks.

Supply Chain Reliability

Consistency in suppliers is important for keeping production going. We keep large stock levels of common specifications on hand, which lets us fill reorders within days instead of weeks. This feature comes in handy when demand suddenly rises or when production plans have to be sped up to meet customer obligations. Our declared capital of 500,000 RMB and history of almost ten years in business give clients the financial security they need when making long-term supply deals.

Customization Capabilities and Technical Support

Standard specifications work well for most uses, but sometimes special needs come up. When a customer orders sample-based manufacturing, they give us real examples of the fasteners they need, and our engineering team figures out how to make them fit the specifications. Custom coating choices can be used in specific rust conditions, and changes to the dimensions can be made to work with odd combos of wire gauges or space limitations in custom assembly designs.

During the purchase and deployment process, our technical team is always available to help with installation issues, questions about how to make the tools work better together, or questions about how to improve performance. This support goes beyond the original buy; it also helps clients fix problems that come up when production grows or when materials are switched.

Conclusion

When choosing the right wire fixing options, it affects both how quickly and how long the products last. For making mattresses, putting together furniture, making seats for cars, and making cages, the C-17 Hog Ring standard works reliably. Galvanized steel, zinc-aluminum alloys, and stainless steel are some of the materials that can be used. These are available in a range of prices to meet the needs of different environments. High-volume facilities can speed up assembly times with pneumatic installation compatibility, while lower-volume operations can do well with hand plier choices. TJJZ is a reliable partner for North American procurement workers who want consistent fastener performance and quick technical help. This is because we know how to make things, have strict quality control procedures, and have a reliable supply chain.

FAQ

What wire gauges work best with C-17 hog rings?

When connecting 12-gauge to 16-gauge lines, these clamps work best, but they can also be used with materials that are a little thicker or thinner. The 16.9 mm crown width gives it enough grip area to close securely around mattress springs, furniture frame wires, and cage mesh materials that are popular in U.S. factories.

Can these rings withstand outdoor exposure?

Galvanized steel types can withstand mild weather for several months, which makes them good for temporary fences or short-term farming uses. Zinc-aluminum alloy finishes protect against rust better and are good for things that spend a lot of time outside in humid conditions. For the longest life, permanent outdoor projects that will be exposed to direct weather should be made of stainless steel.

How do I prevent tool jamming during pneumatic installation?

Jamming usually happens when there is too much glue dust or rings that aren't the same size. Our oil-film-coated rings get rid of the sticky stuff that gets stuck in feed systems. Most feeding problems can be avoided by keeping tool parts clean and using properly assembled rings from quality-controlled sources. Checking for nose piece wear on a regular basis and adjusting the air pressure settings as directed by the tool's maker also lowers the number of malfunctions that happen.

Partner with TJJZ: Your Reliable C-17 Hog Ring Supplier

TJJZ wants procurement managers, production supervisors, and supply chain workers to see for themselves how our fastener solutions are made and how quick our service is. We combine competitive bulk pricing with the technical know-how required to support your unique assembly needs as a seasoned C-17 Hog Ring manufacturer that has been in business since 2015. Our engineering team is ready to talk about your project details and suggest the best ways to solve it, whether you need standard galvanized specifications or special zinc-aluminum coatings. Email us at userID@jinzhuangfastener.com to ask for trial shipments, talk about prices for large orders, or look into the possibility of OEM customization. You can look through our full catalogue of fasteners at jinzhuangxincailiao.aixdb.cn and learn how our short production lead times (3-5 days) and large inventory help keep manufacturing going in the furniture, car, and farming sectors.
