Zinc Plated Hog Rings for Packaging Lines and Industrial Fastening

If you manage procurement for a packaging line, furniture factory, or agricultural equipment operation, you already know how much a fastener failure can cost you. A zinc plated hog ring is a C-shaped, D-shaped, or M-shaped carbon steel fastener coated through an electrolytic zinc process. That zinc layer provides sacrificial cathodic protection, meaning the coating corrodes before the steel core does. This makes these rings a practical, cost-conscious choice for operations that need dependable structural binding under moderate moisture conditions, without paying a premium for full stainless steel.

Understanding Zinc Plated Hog Rings: Features and Applications

What Are They, Exactly?

The carbon steel wire used to make these fasteners is usually between 11 and 16 AWG, and it is shaped into closed-loop forms before it is plated. A uniform zinc layer that meets ASTM A641 coating weight standards is applied during the electro-galvanization process. Tensile strength is usually between 600 and 1,100 MPa, which is strong enough for the ring not to spring back after being crimped.

Key Physical Properties

Most buyers don't realize how important a smooth, burr-free finish is. In high-speed pneumatic magazine tools, even a small flaw on the surface can cause a jam that stops the line of work. Dimensional limits of ±0.02mm make sure that feeding works the same way every time. According to ASTM B117, salt spray protection usually lasts between 72 and 120 hours before red rust shows up. This depends on how thick the layer is.

Where Are They Used?

These rings are used in a lot of different fields. In the mattress business, bed nets are attached to layers of fabric. They hold upholstery covers to internal wire frames in furniture and car seats. In farming, they put together trellis systems, chicken coops, and pet pens. In civil engineering, they connect the wire mesh baskets that are used to build gabion walls. This is done in logistics and packing to hold wooden boxes and cable reels in place. Because they can be used in so many situations, they are one of the most useful closures in B2B production settings.

How to Choose the Right Hog Ring for Your Application?

Assess Your Environment First

Think about where the clip will go before you place a large order. Low-humidity wrapping lines inside? That works well with a standard zinc-plated option. Agricultural fences along the coast or exposed to saltwater? Grade 304 or 316 stainless steel is what you should use. The zinc coating lasts between 5 and 10 years in normal inland outdoor conditions, depending on the micron thickness.

Match the Gauge to the Application

Wire gauge has a direct effect on clamping force and tool compatibility. When putting together solid mesh, heavier gauges give you higher shear strength. When attaching fabric to furniture or upholstery, lighter gauges work better because too much clamping can tear the material. Before you order, make sure that the Zinc Plated Hog Ring crown width and leg length match the magazine specs for your pneumatic gun, like the SR8, SC7, or HR23 series.

Compare Coating Types Rationally

Heading 3:006: Here is a simple list of your main choices:

• Zinc plated (electro-galvanized): Best balance of dimensional precision, smooth tool feeding, and moderate corrosion resistance. Most cost-effective for indoor and sheltered applications.
• Hot-dip galvanized: Thicker coating offers longer outdoor life, but the uneven surface can cause tool jams in automated systems.
• Stainless steel (304/316): Best for marine or high-humidity environments, but carries a significantly higher per-unit cost.
• Black oxide: Minimal corrosion protection; primarily used in dry indoor applications where appearance matters more than durability.

This is black oxide: Not very good at stopping rust; mostly used indoors in dry situations where looks are more important than durability.

Benefits and How to Use Them Effectively

Core Advantages on the Production Floor

Heavy-duty zinc-plated hog rings are used in large-scale production because they solve real production issues. For procurement and production teams, these are the main benefits that matter:

• Smooth feeding performance: The burr-free surface prevents jams in pneumatic applicators, which directly reduces unplanned downtime.
• Corrosion resistance for moderate environments: The zinc layer protects fasteners stored in warehouse conditions and installed in furniture or packaging applications where occasional moisture is expected.
• Consistent crimping: High tensile strength prevents deformation during closure, maintaining structural integrity across thousands of cycles per shift.
• Broad tool compatibility: Standard gauge and crown dimensions fit a wide range of commercially available pneumatic and manual hog ring pliers.

When these benefits are put into practice, there are fewer breaks in production, less waste, and more consistent assembly output.

Step-by-Step Installation

The installation process is simple. Put the rings into your pneumatic tool or clamps that you can use by hand. Wrap the wires, mesh, or cloth pieces you want to join with the open end of the ring. To close the ring, squeeze or pull the trigger. Before crimping the ring for car upholstery, make sure it doesn't touch the heating element below. To make the cage, put rings along the mesh joints at regular intervals to spread the load out evenly. Before a new production run, sample rings are bent 180 degrees to make sure that the zinc coating doesn't flake off when the rings are crimped.

Real-World Application Evidence

When it comes to commercial farming, hog rings are the standard way to attach chicken cage panels together. Studies that look at how long animal housing lasts always find that fastener rust is the main reason why structures fail in the first three years. In controlled tests, switching to properly zinc-coated rings increased the time between service intervals. When it comes to automotive seating, Tier 1 suppliers require fasteners used in high-speed assembly cells to have dimensions that are no more than 0.05 mm off. This makes consistent plating quality an important requirement for buying.

Market Comparison: Zinc Plated vs. Other Hog Ring Types

Cost Position in the Market

Zinc Plated Hog Ring rings are a lot cheaper per thousand units than rings made of stainless steel. For companies that use a lot of materials, like those that make wooden pallets or mattresses and work multiple jobs, this price difference grows very quickly over the course of a year. The performance gap only matters in places where people are directly exposed to chemicals or salt spray.

Tool Compatibility Advantage

The finishing process on hot-dip zinc rings often leaves the surface rough. Misfeeds happen in pneumatic mags because of these flaws, especially when the turn rate is high. Tight size tolerances are needed for automated systems, and electro-galvanized rings keep those tolerances. For production workers who work 10-hour shifts on assembly lines that make mattresses or cages, this difference has a direct effect on how much work gets done each hour.

When to Choose a Different Type?

There are times when zinc-plated rings are not the best choice. If you work with marine fencing, saltwater aquaculture, or outdoor installations along the coast, stainless steel is the right material for you. Black oxide rings may help you save even more money on materials if your job is completely dry and inside where there is no chance of water getting in. The smartest way to buy fasteners is to match the type of fastener to the real business environment.

Procurement Guide: Buying for Your Business

Identifying a Trustworthy Supplier

Look for suppliers who can give you written reports on dimensional inspections, salt spray test results (ASTM B117), and coating adhesion test data. Suppliers that have been producing the same way since at least 2015 show that their factories are stable enough to meet the requirements of annual supply contracts. Tianjin Jinzhuang New Materials Technology Co., Ltd. has been open nonstop since February 2015, keeping stock on hand with a 3–5 day production wait time and responding to inquiries within 3 minutes.

Bulk Orders and Customization

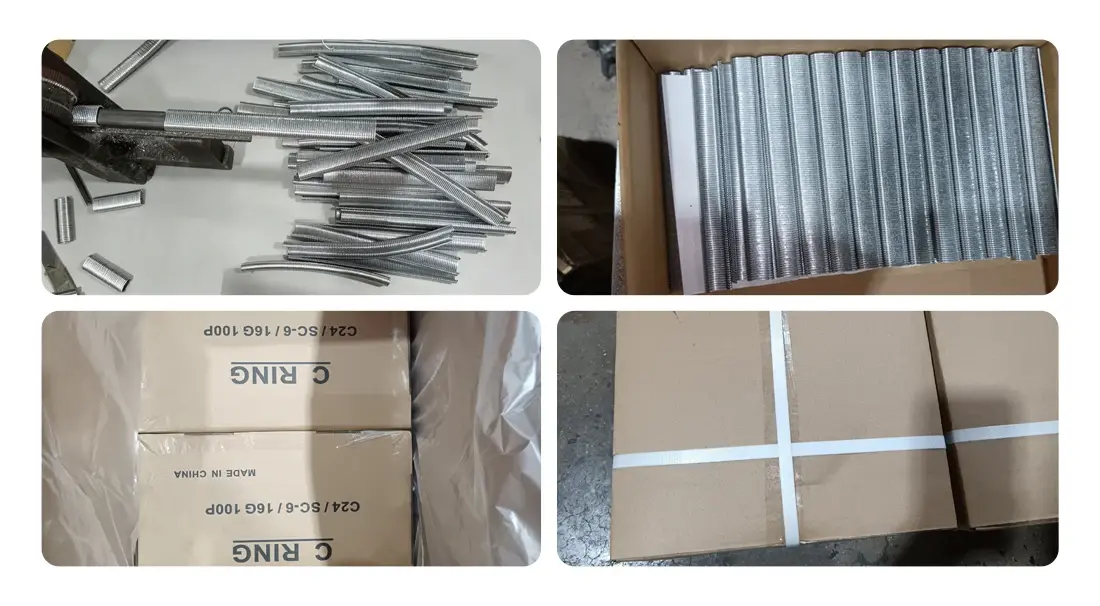

People who buy a lot of packaging, furniture, or farm equipment usually need specifics that aren't available off the shelf. These can include the wire gauge, ring diameter, coating thickness, and packaging format. TJJZ supports sample-based manufacturing, which means that they make things based on samples or technical drawings provided by the customer. This takes the guessing out of the design process and lowers the chance of getting stock that doesn't meet the requirements.

Logistics and After-Sales Support

Because TJJZ is close to Tianjin Port, it has a clear logistical advantage for U.S. importers. Full-pallet shipping lowers the risk of damage to cargo during ocean freight. Sample orders can be placed by new customers before they commit to a full sale. You can look at product details and available SKUs at jinzhuangfastener.com.

Conclusion

Zinc plated hog rings are a useful and inexpensive way to fasten things in agriculture, furniture, packaging, and the auto industry. Because they have a smooth surface, consistent sizes, and a moderate resistance to corrosion, they are the best choice for most production settings in the US. If you choose the right gauge, finish type, and provider based on how your product will be used, you will cut down on downtime, save money on materials, and make your product last longer. You can easily decide what to buy when you compare the product specs to tested data from a source whose manufacturing is known to be stable.

FAQ

Do zinc-plated hog rings rust outdoors?

A properly coated ring can last between 5 and 10 years in normal inland environments, depending on how thick the coating is, which is measured in microns. They shouldn't be exposed to saltwater or the ocean directly. Stainless steel is the right material for outdoor uses near the coast or in places with a lot of humidity.

How do they compare in strength to stainless steel rings?

Most zinc-plated carbon steel bands have a tensile strength between 600 and 1,100 MPa. Stainless steel bands have about the same tensile strength as other metals, but they are much more resistant to corrosion in harsh conditions. The carbon steel version works just as well and costs less in dry or fairly wet conditions.

Can I order custom sizes?

Yes. Sample-based production is supported by suppliers like TJJZ, which can make bands with specific wire gauges, crown widths, and leg lengths.

Are they compatible with all pneumatic hog ring guns?

As long as the gage and crown size fit the tool's magazine, like the SR8, SC7, or HR23 line, they will work together. Before buying a new ring SKU, you should always check the size requirements with the company that made your tools.

What quality tests should I request from a supplier?

Ask for the results of the ASTM B117 salt spray test (within 72 hours), a report on the coating's ability to withstand bending, and a report on the dimensions of the crown and legs.

Request a Sample or Quote from TJJZ — Your Zinc Plated Hog Ring Supplier

Since 2015, TJJZ has been making Zinc Plated Hog Rings and other industrial fasteners. They keep a steady stock, have wait times of 3–5 days, and there is no minimum order size for trials. Our rings have a protective oil film covering, smooth surfaces without burrs, and uniform sizes so that your pneumatic tools can keep working without stopping. You can email our team at userID@jinzhuangfastener.com or go to jinzhuangfastener.com to get a free sample or a personalized quote for bulk orders right now.

References

1. Industrial Fastener Institute Handbook — Industrial Fastener Institute, 2021

2. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus — ASTM International, 2019

3. ASTM A641: Standard Specification for Zinc-Coated (Galvanized) Carbon Steel Wire — ASTM International, 2020

4. Fastener Technology International: Wire Formed Fasteners in Agricultural and Industrial Applications — Fastener Technology International, 2020

5. Journal of Materials Engineering and Performance: Corrosion Behavior of Electro-Galvanized Steel Wire in Controlled Humidity Environments — Springer, 2022

6. Packaging Technology and Science: Structural Fastening Methods for Wood-Based Packaging Systems — Wiley, 2021
