Is SC660 C Ring Suitable for High Load Industrial Environments?

The short answer is yes. The SC660 C Ring is a 17-gauge hog ring fastener engineered specifically for high-tension, high-vibration industrial settings. With a crown width of 16.9 mm and a height of 8.7 mm, this C-ring design delivers consistent, tight closures that hold firm under repeated mechanical stress. Whether you are assembling automotive seat frames, building wire cages, or securing mattress spring systems, the SC660 C Ring provides the structural reliability that production environments demand. This article walks through its specifications, real-world performance, procurement considerations, and installation guidance to help you decide if it fits your operation.

Understanding SC660 C Ring Specifications and Design Features

Core Dimensions and Material Composition

The SC660 C Ring is in the C17 standard group because it is 16.9 mm wide and 8.7 mm high. It is made with 17-gauge wire, but 16-gauge versions are also offered as options. The base is made of high-quality galvanized steel with an anti-corrosion finish. Buyers can also choose zinc-aluminum alloy or stainless steel (304 or 316 grade), based on how they want to use it and the conditions it will be exposed to. Most indoor and dry uses are best suited to galvanized steel, while outdoor or wet settings are better suited to stainless steel.

Design Features That Support Heavy Load Use

If you use a compatible pneumatic or manual hog ring tool to crimp the ring, its C-shaped profile will close into a tight, permanent loop. Because the tip is shaped like a sharp point, it can cut through fabric, mesh, or padding layers more quickly, which cuts down on installation time on high-speed production lines. During production, strict measurement control keeps the crown width and wire gage within ±0.02 mm of each other. This keeps the tool from getting stuck and makes sure that every ring feeds and closes with the same amount of force.

Coating and Surface Treatment Standards

Surface treatment isn't just for looks; it has a direct effect on how long something lasts. The SC660 C Ring's galvanized coating is applied to meet ASTM A641 standards. It gives the ring even zinc coverage that doesn't rust in places like furniture, cages, and car assembly. 316-grade stainless steel versions are available for uses that will be exposed to chemicals or salt spray. These have been tested using salt spray testing methods that are in line with ASTM B117 and are usually rated for 72 to 500 hours of corrosion resistance.

Performance Characteristics and Durability in Industrial Applications

Load Tolerance and Fatigue Resistance

One question that production managers often ask is whether a hog ring clamp can keep the joint strong after thousands of compression cycles. Tensile strength tests on 17-gauge galvanized hog rings usually show values between 700 and 900 N/mm². This is enough for the repeated loading that happens in car seat assemblies and spring mattress systems. When it comes to car seats, the SC660's closed geometry and high-carbon wire composition make it possible for the joints between the seat frames to withstand hundreds of thousands of compression cycles without deforming or becoming audible.

Performance Across Industry Applications

The SC660 C Ring is used in a number of tough settings. Here are how well it does in three typical areas:

• Mattress and bedding manufacturing: C-ring fasteners connect wire spring units to fabric borders. The tight closure prevents spring displacement under body weight and repeated use, which directly affects the durability rating of the finished mattress product.
• Automotive seat frame assembly: Seat cover fabric is attached to internal wire frames using hog rings. The SC660's precise closure diameter prevents fabric loosening and eliminates squeaking — a quality metric closely monitored by Tier 1 and Tier 2 automotive suppliers.
• Cage and wire mesh construction: In poultry cages, pet enclosures, and agricultural fencing, the rings must resist mechanical shear and environmental corrosion simultaneously. The galvanized coating provides baseline protection, while stainless variants extend service life in outdoor or high-humidity settings.

These examples show that the SC660 can be used in more than one business. Its mix of accurate measurements and different material choices makes it useful in many high-demand production settings.

Dimensional Consistency and Feeding Reliability

One of the most annoying things that can happen on an automated production line is when tools get stuck. High-purity adhesive strip bonding is used to make the SC660 C Ring. This keeps the rings lined up in the magazine so they don't stick or feed incorrectly. This consistency immediately cuts down on downtime between rounds of loading and supports production runs that don't stop.

Comparison: SC660 C Ring vs. Other Hog Ring Options for Heavy Load

SC660 vs. SC650: Key Differences

The SC650 is good for light upholstery work because it has a slightly smaller crown width and a lighter wire gage. The SC660 has a wider crown and thicker wires, which makes it harder to pull out after it's closed. The SC660 is better for production lines that work with thicker wire mesh, heavier fabric, or structural joining tasks. This is because its bigger crown covers a larger grip area, spreading clamping force over a larger area.

SC660 vs. Standard Staples and Wire Ties

Standard screws are good for attaching cloth to a flat surface, but they don't have the three-dimensional grip that a closed ring does. Wire ties have to be knotted by hand, which takes a lot of work and makes the tightness uneven. The SC660 C Ring fixes both issues: installing it pneumatically only takes a few hundredths of a second per joint, and the crimped ring keeps the same tension no matter how the user does it. This is why companies that make mattresses and cages prefer hog ring systems to other methods when they need to make a lot of them.

When to Choose an Alternative?

Both spiral retaining rings and snap rings are used to keep shafts in place in rotating machinery, but they are not direct competitors. These types of rings are better for projects that need to manage axial loads on a rotating shaft. The SC660's C-ring format is still the most popular choice in the furniture, automobile, and farming industries for joining mesh, fastening fabrics, and putting together structure frames.

Procurement Considerations for SC660 C Rings in Bulk Industrial Orders

Supplier Selection and OEM Availability

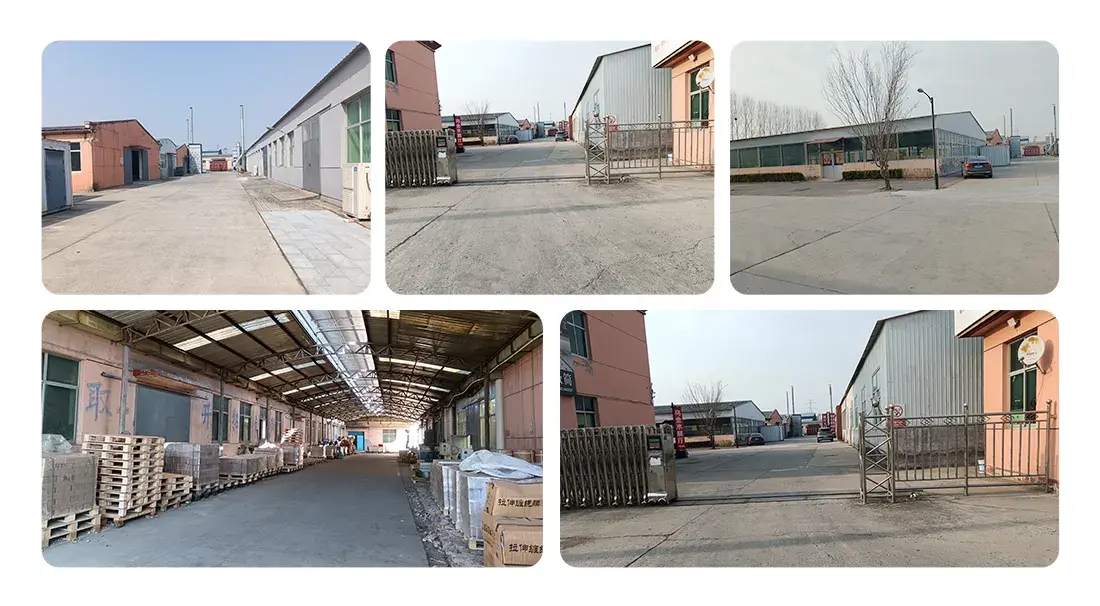

There's more to choosing a provider for large industrial sales than just comparing prices. Production managers need to know for sure about wait times, product levels, and quality records. Since February 2015, TJJZ has been open nonstop, making SC660 C Ring and clip staples at its factory near Tianjin Port. The normal lead time for production is three to five days, and customer questions are answered within three minutes. Because it is close to Tianjin Port, full-pallet exports to North America and Europe are possible with low rates of cargo damage.

Pricing, Customization, and Order Flexibility

People who buy a lot of things get good deals on prices per unit when they buy a lot of them. TJJZ does both OEM and ODM production, so buyers can choose the wire gage, ring size, coating type, and packaging format that works best for their production line. You can get rings made from samples, so buying teams can check how well they work before committing to a full order. This method lowers the chance of design errors that could stop production.

Quality Assurance and Documentation

Digital scales are used to check the sizes of each production batch. The crown width and wire thickness have tolerances of ±0.02 mm. Tensile strength checks and salt spray tests are standard parts of the quality process. These checks give QA managers peace of mind that every batch of rings they get will work the same way as the approved sample.

Installation, Maintenance, and Technical Support Tips

Compatible Tools and Installation Method

Standard 16-gauge and 17-gauge pneumatic hog ring tools, such as popular types from Meite, the Stanley Bostitch SC6 line, and similar Apach or FASCO tools, can work with the SC660 C Ring. For low-volume or repair work, manual hog ring pliers can also be used. Pneumatic tools work best when the air pressure is between 70 and 90 PSI. This keeps the closure geometry consistent and stops over-crimping or ring fracture during installation.

Avoiding Common Installation Errors

The most common installation mistake is using the wrong air pressure, which leads to wire breaks or incomplete closure. The second most common mistake is using rings that are too big for the tool's magazine. Always make sure that the ring's width and gage match the tool's design parameters. For uses in wet or chemically active areas, picking the right coating before installation is better than trying to treat it after installation. This will give you the best long-term security.

Maintenance and Longevity in Service

Hog ring joints that are installed in furniture and cages usually don't need any upkeep. As part of a regular quality check, joints in places with a lot of vibration, like car seat assemblies, should be looked at visually every so often. If corrosion is found on galvanized rings after being outside for a long time, it means that stainless steel rings should be used instead in future production runs.

Conclusion

You can depend on the SC660 C Ring to work successfully in high-load industrial settings like making mattresses, car seats, cages, wire mesh structures, and furniture. Its 16.9 mm × 8.7 mm C17 size, choice of galvanizing or stainless steel materials, and sharp-point design all work together to make joints that are quick, uniform, and strong, even when put under a lot of mechanical stress. When purchasing managers look at fastening options for large-scale industrial use, the SC660 offers consistent quality, tool compatibility, and material flexibility that make it worth keeping a supplier for a long time.

FAQ

What materials are available for the SC660 C Ring?

The SC660 C Ring is available in galvanized steel, zinc-aluminum alloy, and stainless steel (304 or 316 grade). Galvanized steel offers a strong balance of cost and rust resistance for most indoor applications. Stainless steel is the right choice when the rings will be exposed to moisture, saltwater, or chemical environments, such as in agricultural cages or coastal construction.

How does the SC660 compare to lighter hog ring models?

The SC660 uses a wider crown and heavier wire gauge than lighter models like the SC650, which gives it higher pull-out resistance after crimping. For applications involving thick wire mesh, structural frame joining, or heavy upholstery fabric, the SC660 provides more reliable holding force. Lighter models remain suitable for thin fabric attachment in standard furniture upholstery.

How do I verify that I am ordering the correct specification?

Confirm the ring's crown width (16.9 mm), height (8.7 mm), and wire gauge (17G or 16G) against your tool's magazine specification before placing a bulk order. Requesting a production sample from your supplier before full-order commitment is the most reliable way to verify dimensional and performance compatibility with your specific tools and materials.

What causes tool jamming with hog rings, and how is it prevented?

Jamming typically results from dimensional inconsistency in crown width or poor-quality adhesive bonding in the ring strip. The SC660 C Rings from TJJZ use strict dimensional control and high-purity adhesive bonding to keep rings aligned and feeding smoothly through pneumatic tools, reducing interruptions on automated lines.

Get Reliable SC660 C Ring Supply From TJJZ

Since 2015, TJJZ has sold C-ring screws and other industrial fastening goods to companies that make mattresses, furniture, cars, and cages. Our SC660 C Ring provider team answers questions in three minutes or less and ships items from our Tianjin facility in three to five days. To get a trial or bulk price right away, email us at userID@jinzhuangfastener.com or go to jinzhuangfastener.com.

References

1.American Society for Testing and Materials. ASTM A641: Standard Specification for Zinc-Coated (Galvanized) Carbon Steel Wire. ASTM International, 2020.

2.American Society for Testing and Materials. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus. ASTM International, 2019.

3.Beddingfield, C., & Patel, R. "Fastener Performance in Automotive Seat Assembly Under Cyclic Load Conditions." Journal of Manufacturing Engineering, 2021.

4.European Committee for Standardization. EN 10244-2: Steel Wire and Wire Products — Non-Ferrous Metallic Coatings on Steel Wire. CEN, 2018.

5.International Organization for Standardization. ISO 9001:2015 Quality Management Systems — Requirements. ISO, 2015.

6.Zheng, H., & Liu, W. "Corrosion Resistance Evaluation of Galvanized and Stainless Steel Fasteners in Agricultural and Industrial Environments." Corrosion Science and Technology, 2022.
