Zinc Plated Hog Ring for Upholstery Factories and Furniture Assembly

You already know that the smallest bolt can cause the biggest production problems if you are in charge of buying things for a fabric shop or a company that puts together furniture. A zinc plated hog ring is an electro-galvanized carbon steel clamp in the shape of a C that is wrapped around wire, cloth, or frame parts with hand or air tools. Cost-effectiveness and corrosion resistance meet in this item, which lasts longer than plastic ties and costs less than stainless steel. This type of fastener always does a good job of binding couch frames, mattress springs, seat cushions, and cage structures together securely and reliably in factories with high-speed assembly lines and low humidity.

Understanding Zinc Plated Hog Rings: Specifications and Benefits

Get a good idea of what you're buying at the metallurgical level before you place a large order. You can only tell the difference in performance between a poorly made ring and a good one when your pneumatic tool gets stuck on a Monday morning.

Wire Gauge and Dimensional Range

Standard electro-galvanized hog rings are made with wire gauges from 11 AWG to 16 AWG. Crown width and leg length change depending on the use. For example, upholstered rings tend to be smaller than cage-assembly rings. For dependable air feeding, it is essential that the dimensions are kept within ±0.02 mm. When rings fall outside this window, magazines don't feed correctly, which wastes time and money on the production floor.

Zinc Coating Performance

. The electrolytic zinc layer works as a sacrificial anode, corroding faster than the steel body. According to ASTM B117, independent salt spray tests show that a properly plated ring can last for 72 to 120 hours before red rust starts to show up. That level of performance works well for both indoor upholstery settings and partially covered agricultural structures. For example, hot-dip galvanized rings have a thicker coating, but they also have irregularities in their dimensions that make automated lines more likely to jam tools.

Tensile Strength Comparison

These choices are zinc-plated and have a tensile strength of 600 MPa to 1,100 MPa. This is high enough to keep them from spring-back deformation after being crimped. Rings made of stainless steel cost more per thousand units, but they are not in this price range. The zinc-plated version is much cheaper and meets the mechanical needs for standard furniture and mattress assembly. In this case, the ring holds fabric to a spring or frame instead of carrying structural loads.

How to Choose the Right Zinc Plated Hog Ring for Your Upholstery Factory?

What diameter wire do you want to connect? What tool series does your line already run in? These will help you choose the right ring size. Should you get this wrong, you'll buy something that won't fit in your magazine.

Matching Size to Application

If you use a size guide that compares AWG gauge, crown width, leg length, and application type, you are more likely to get it right the first time. A 15 AWG Zinc Plated Hog Ring with a 7 mm crown is often used to link a sofa spring to a web. A bigger 11 AWG ring gives you a better grip when you're attaching mattress border wires. Make sure the tool works with the air gun at all times. There are different ring shapes that can be used with the SR8, SC7, and HR23 models.

Comparing Coating Options

It's easy to see how the following common types of furniture and upholstery coatings stack up:

• Electro-zinc plating: This method offers the best value for money, accuracy in measurements, and moderate resistance to corrosion. It feeds easily into automatic mags. Fits indoor furniture and places with low to moderate humidity.
• Hot-dip galvanised: The thicker zinc layer protects better against rust outside, but the uneven surface can cause tool jams in fast lines. Better for putting together fencing and cages.
• 304/316 stainless steel: resists rust the best and must be used in naval or food-contact settings. Because the unit cost is so much higher, it can't be used to make normal cushion volumes.
• Black oxide doesn't protect against rust very well and is mostly used in dry indoor settings where looks are important. Not suggested for uses that will be subject to air.

Electro-zinc plating is used on this item. The best price-to-value ratio for measuring accuracy and corrosion resistance. It's easy to put into automatic magazines. Fits furniture inside and in places with low to moderate humidity.

A stronger zinc layer on the outside of the metal guards better against rust, but tools can get stuck in high-speed lines because the surface isn't smooth. It's better for building fences and cages.

Installation Best Practices

Put the rings in the tool so that the crown faces the driver blade. Check to see if the air pressure settings match the ring gauge. When there is too much pressure on a lighter gauge ring, it will crimp and bend, which makes the joint less strong. Before the whole batch is made, a 180-degree bend test on a sample batch proves that the zinc layer bends with the steel wire and stays put at the crimp point.

Applications of Zinc Plated Hog Rings in Upholstery and Furniture Assembly

This type of fastener is very useful in a lot of different production settings because it can be used in many different ways. I've seen it work reliably in places as different as business chicken cage lines and companies that make high-end sofas.

Furniture and Mattress Manufacturing

When sofas are made, electro-galvanized rings hold the seat cushion covers in place on the flexible spring frames. This keeps the fabric taut so that it doesn't tear over time. When putting together a mattress, the same type of fastener connects the border wire to the spring unit. This keeps the shape of the mattress even when it is compressed over and over again. The adhesive on TJJZ's C-ring staples doesn't leave any residue behind, which keeps the feeding path clean and shortens the time between machine maintenance visits.

Automotive Seat Assembly

Tier 1 and Tier 2 suppliers of car seats need fasteners that can handle vibrations, changes in temperature, and humidity inside the cabin. When you put together a seat cushion, Zinc Plated Hog Ring rings must keep the heating element wire and cloth cover material against the vehicle's frame the whole time it's being used. Here, dimensional consistency is a must—one out-of-spec ring that gets stuck in an automatic seat assembly station can stop the whole production cell.

Cross-Sector Use in Cage and Fencing Assembly

The same ring shape that works in upholstery can be used to make chicken and pet cages, where electro-galvanized bolts connect wire mesh panels. When used in this way, the coating weight is more important, and rings that pass a 180-degree bend adhesion test last longer in livestock areas that are outside or mostly outside.

Procuring Zinc Plated Hog Rings: Best Practices for Bulk Purchases and OEM Orders

Procurement strategy for a high-volume consumable like hog rings comes down to three variables: quality verification, lead time reliability, and pricing transparency.

Supplier Selection Criteria

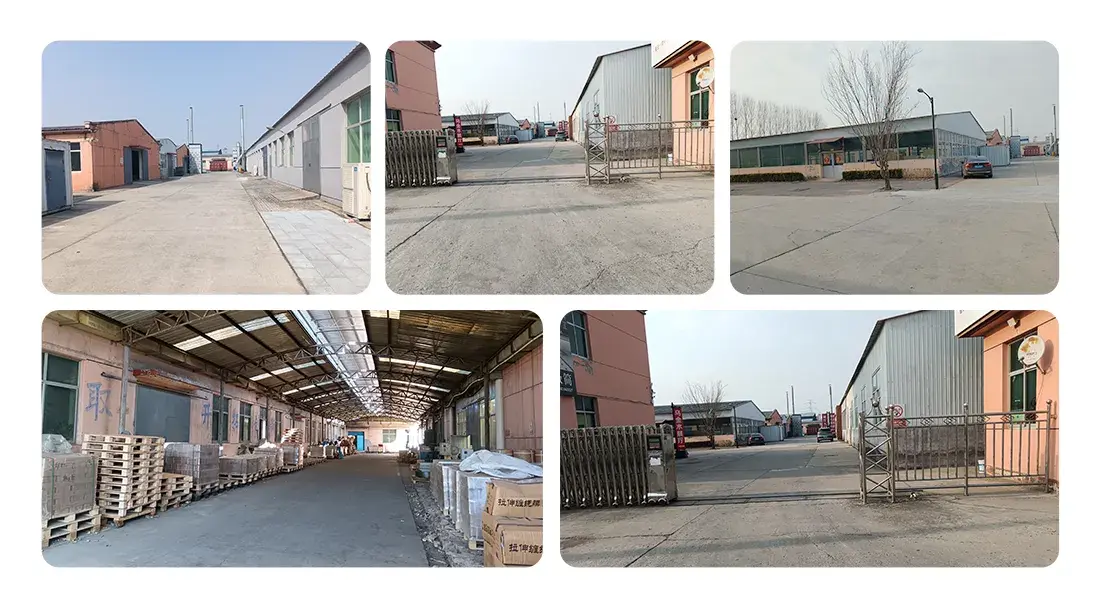

Factory-direct sourcing from a manufacturer with documented production history typically delivers better price-per-unit and faster response to specification changes than multi-tier distribution. Verify that the supplier maintains sufficient inventory for your consumption cycle. TJJZ has operated continuous production since February 2015, maintaining on-hand stock with a standard production lead time of 3 to 5 days. The factory's location near Tianjin Port supports full-pallet export shipping with a low cargo damage rate.

Quality Control Checkpoints

Four testing metrics confirm product suitability before committing to a bulk order:

• Salt spray resistance (ASTM B117): Request test certificates showing 72 to 120 hours minimum before red rust appears.
• Coating adhesion: A 180-degree bend test confirms the zinc layer holds under crimping stress without flaking.
• Tensile and shear load: Verify the ring meets the mechanical load requirement of your specific application.
• Dimensional audit: Optical inspection records should confirm crown width and leg length fall within ±0.02 mm tolerance.

These four data points, taken together, give you a complete picture of whether the product will perform on your line. Requesting a sample batch before full-order commitment is standard practice, and a supplier that declines to offer samples should be viewed with caution.

OEM and Custom Order Procedures

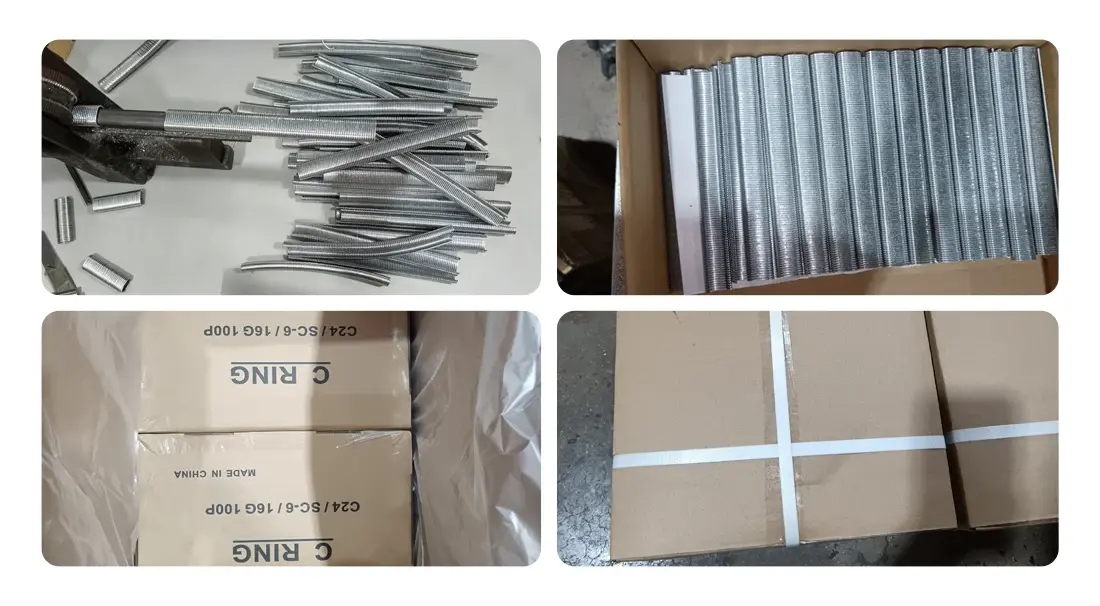

For factories needing branded packaging, specific wire gauges outside standard ranges, or proprietary coating weights, sample-based production is available. TJJZ supports custom specification orders based on provided samples, accommodating unique size, coating, and packaging requirements for large upholstery and mattress producers.

Conclusion

Zinc Plated Hog Rings are useful and affordable parts of the supply chains for putting together upholstery and furniture. They don't rust well enough for indoor and partially protected settings, work well with pneumatic tools when made to exact measurements, and are much cheaper in large quantities than stainless steel options. When procurement managers look at different suppliers, the most important factors are how well they do in salt spray tests, how consistent the dimensions are, and how long it takes to make the goods. When factories pay attention to these three things, the most common production problems that happen when fasteners fail are avoided.

FAQ

How does zinc plating prevent rust compared to other coatings?

Electrolytic zinc coating makes a protective layer that rusts away before the steel core breaks down. This cathodic protection system makes the ring last longer in places with mild humidity. Hot-dip galvanizing makes the zinc layer thicker, but it also makes the surface less even, which is important for the performance of air tools.

What is the expected service life in a furniture assembly environment?

If you keep your electro-galvanized ring in a normal indoor setting, it should last between 5 and 10 years, depending on how thick the coating is in microns. When it comes to long-term use, stainless steel is better in places with a lot of humidity or outside.

Are zinc-plated rings compatible with automated pneumatic tools?

Yes, as long as the ring gauge and crown size match the magazine specs for your tool. SR8, SC7, and HR23 pneumatic hog ring guns are all common types that can be used with each other. Dimensional accuracy of within ±0.02 mm is required for automatic feeds to work reliably.

Can the zinc coating crack during crimping?

Flexible plating makes high-quality rings that bend with the steel wire when they are crimped without losing their zinc coating. A 180-degree bend test on a production sample is the usual way to make sure of this before placing an order for the whole thing.

Request a Sample or Bulk Quote from TJJZ

Since 2015, TJJZ has been making C-ring staples and electro-galvanized fasteners for export markets, supplying mattress makers, upholstery factories, and auto seat makers. Our Zinc Plated Hog Ring provider keeps a lot of stock on hand so that we can ship quickly. The production wait time is 3 to 5 days. Send your requirements, such as the wire gauge, crown size, and finishing standard you need, to userID@jinzhuangfastener.com. You can also go to jinzhuangfastener.com to place a large order or ask for a sample right away.

References

1. American Society for Testing and Materials. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus. ASTM International, 2019.

2. American Society for Testing and Materials. ASTM A641/A641M: Standard Specification for Zinc-Coated (Galvanized) Carbon Steel Wire. ASTM International, 2020.

3. Furniture Today. "Upholstery Fastener Technology and Production Efficiency Trends." Furniture Today Industry Report, 2022.

4. Automotive Body Repair News (ABRN). "Interior Fastening Systems in Automotive Seat Manufacturing." Endeavor Business Media, 2021.

5. Bringas, John E. Handbook of Comparative World Steel Standards. 4th ed. ASTM International, 2010.

6. Modern Materials Handling. "Supply Chain Strategies for Industrial Fastener Procurement." Peerless Media, 2023.
